JANKA KK

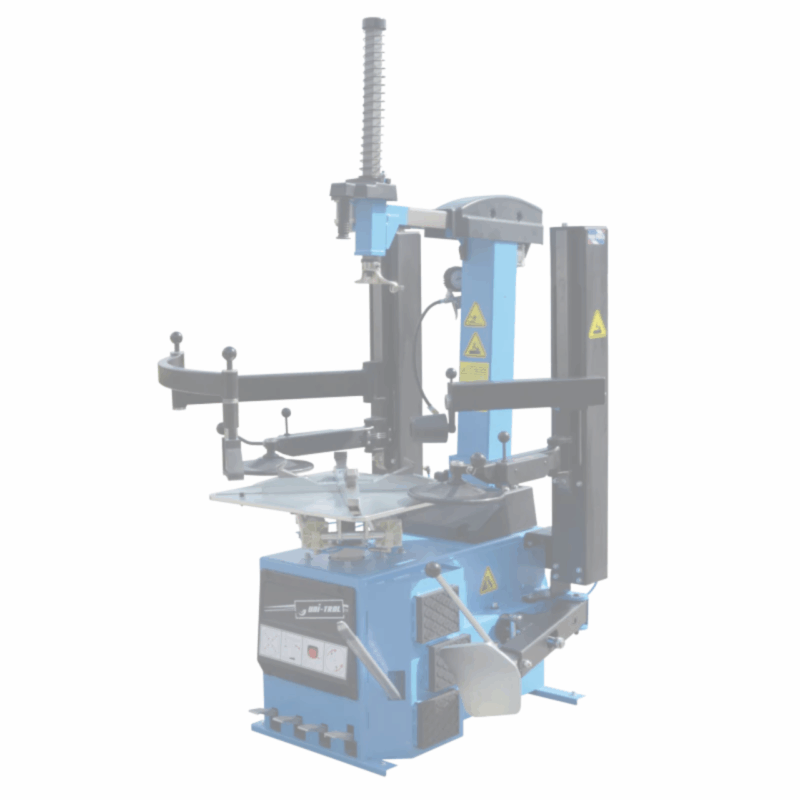

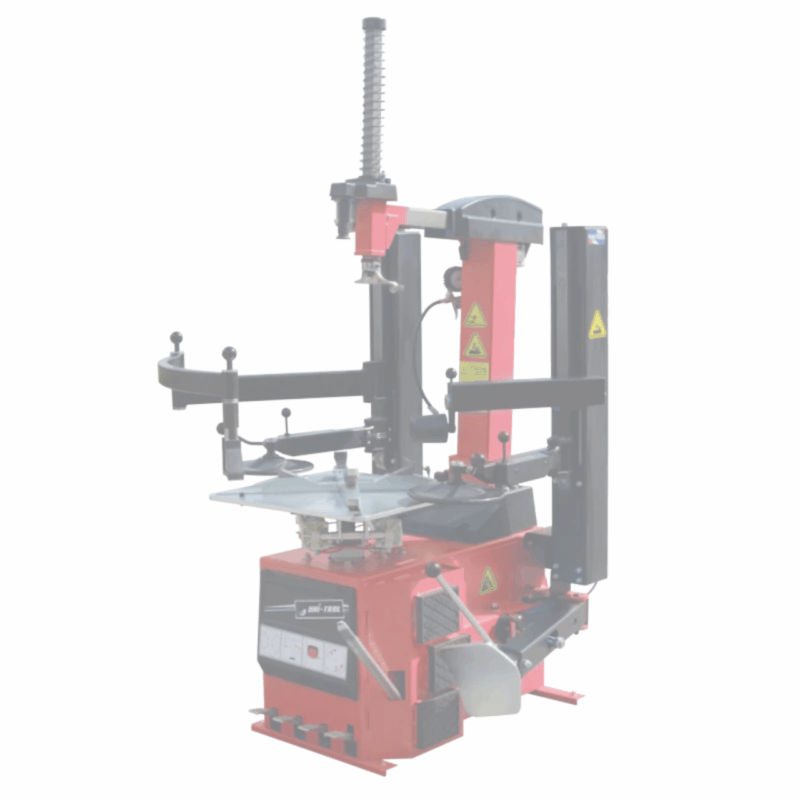

Automatic tyre-changer for car and van wheels including RUNFLAT tyres. The column and the arm move and blocked pneumatically. The robust construction and two independent pneumatic arms saves operator time and effort. The tyres and wheels are handled with little effort and with the highest accuracy without the risk of tyre or rim damage. It also enables handling of aluminum rim wheels without any damage of delicate rim surface. The table of two clamping ranges till 23 " or 26".
Reinforced horizontal slide | |
Grub screws to eliminate the lateral plays on slide during machine operation | |
Column axle pivot and adjusting pads make machine more rigid and durable | |
Ergonomic inside provides long and failureless functioning of the main components. Big and precise cylinder | |
Wheel inflation system controlled by a foot pedal as optional equipment | |
Outside clamping capacity
10" - 26"
Max. wheel width
15"
Max. wheel diameter
1070 mm
Bead-breaker pressure force
2800 kg
Pneumatic supply
8 - 10 bar
Table rotation speed
7 obr./min.
Electric supply
3 x 400V / 50 Hz
Motor power
0,75 kW
Weight
300 kg
Wheel clamp
Pneumatic
Dimensions
950/1520/900
Basic colours
Colours on request
