TOTEM

Wheel data entry:
Automatic input of distance
Automatic input of diameter
Automatic measurement of wheel width

Type of screen:
LCD monitor

Type of monitor:
Touchscreen

Shaft diameter:
Ø 40 mm

Type of clamping:
Manual locking HAWEKA

Laser on Top (12):
Opcja dodatkowa do zamontowania

Index

TOTEM

availability

Available

net price

gross price

Delivery price

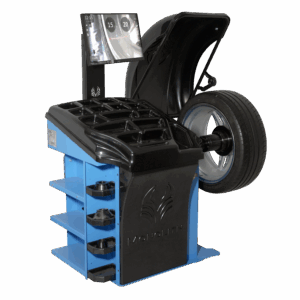

TOTEM is a wheel balancer with laser measuring arm entering wheel parameters and wheel guidance system directing the wheel to unbalance point. The system memorizes the data and shows precisely the weight position. The machine is equipped with ultrasonic sonar for contactless wheel width measurement and rim recognition system according to the entered parameters.The completely new operating system based on two buttons and a wheel as a selection cursor makes the machine very intuitive to use.The machine has a touchscreen LCD monitor making the navigation through the menu even easier and faster. The machine can be equipped with a pneumatic clamp.

  • Automatic positioning lock
  • Laser measuring arm
  • Laser line
  • Automatic ultrasonic non-contact rim width acquisition
  • ALU programmes
  • 2 ALU programmes for motorbikes
  • Optimization
  • Programme "hidden weight"
  • Voice synthesizer
  • Touchscreen LCD monitor

Distinctive features:




New interface

Touchscreen monitor
Precise laser indicator
        Keyboard-free navigation
Easy calibration
Print to file
Work lighting
Automatic wheel positioning



Rim diameter range:

10" - 30"

Rim width range:

2" - 15"

Maximum wheel weight

80 kg

Balancing accuracy

1 g

Measuring speed

140 obr/min

Power of the drive engine

80 W

Electric supply

230V / 50 Hz

Pneumatic power supply

8 - 10 bar

Dimensions

1010/1350/1550 mm

Weight

120 kg
