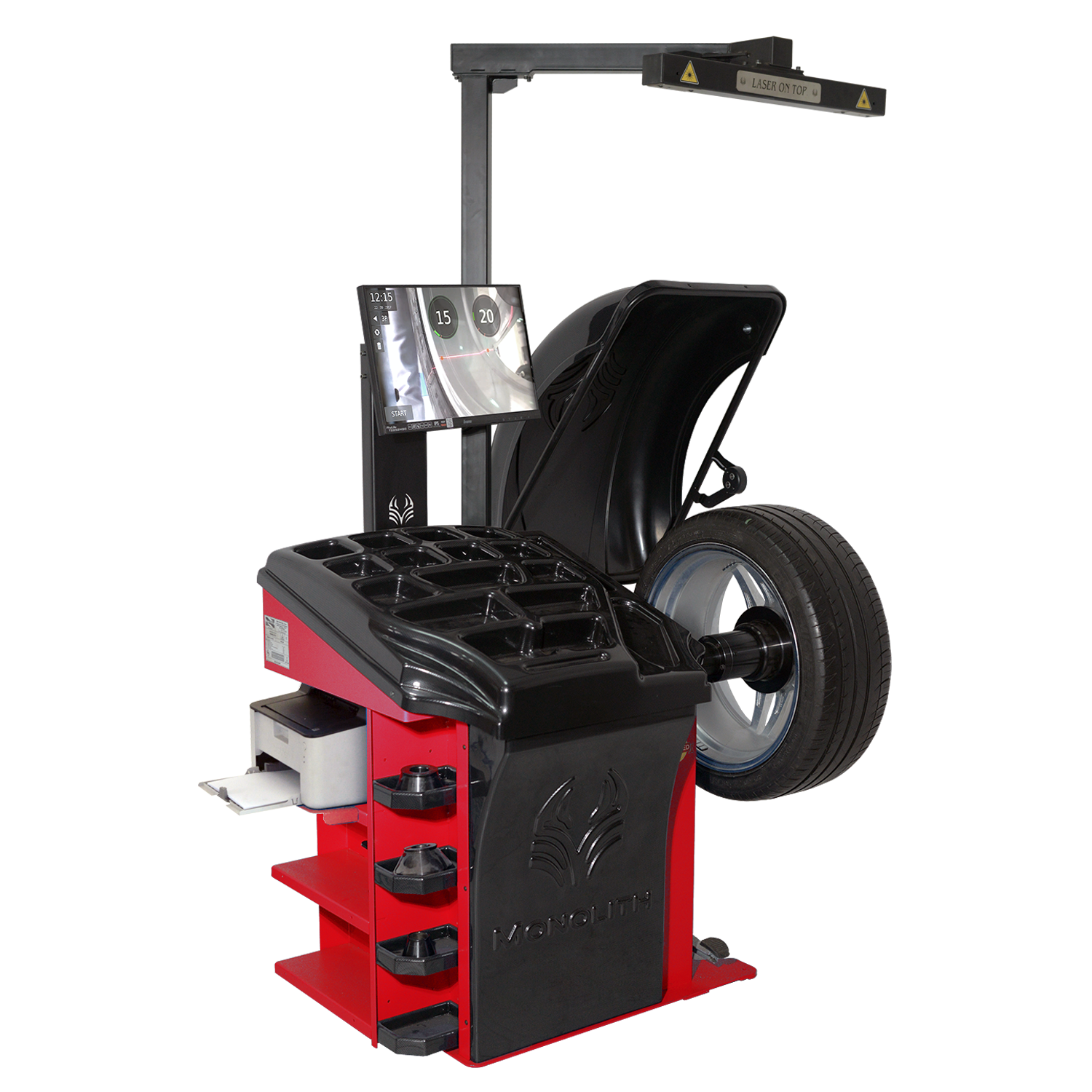

MONOLITH + LOT

Wheel data entry:
Automatic input of diameter
Automatic measurement of wheel width
Automatic input of distance

Type of screen:
LCD monitor

Type of monitor:
Touchscreen

Shaft diameter:
Ø 40 mm

Type of clamping:
Pneumatic locking Uni-Trol

Laser on Top (12):
standard accesoriess

Index

MONOLITH + LOT

availability

Available

net price

gross price

Delivery price

Paleta euro 200zł netto

The balancer is equipped with a patented system of automatic wheel parameters input based on real camera image. The laser pointer defines more precisely the correction point and shows the exact position for adhesive weights application.

MONOLITH with LOT-System (Laser On Top) is an ultra-modern balancing machine with even more accurate indication of the correction place. The laser beam sets axis “at 12 o’clock” eliminating the risk of mistakes in placing clip-on weights.
Modern pneumatic quick-clamp significantly shortens the wheel mounting time and eliminates the risk of eccentric wheel mounting. Clamp mechanism is controlled by ergonomic pedal.









    • Automatic protection hood
    • LOT-System (axis for weight positions  ” at 12 o’clock”)
    • Pneumatic quick clamp
    • Pneumatic brake at unbalance position
    • Calibration
    • Voice synthesizer
    • Laser adjuster
    • Alu programmes
    • Automatic positioning lock
    • Contactless wheel parameters measurement
    • Optimization
    • USG rim width measurement
    • Programme 3P  – “hidden weight”
    • Touchscreen LED monitor
    • Print to file
    • Operator’s memory
    • Automatic diameter, width and offset measurement
    • Unbalance recalculating



Rim diameter range:

10" - 30"

Rim width range:

2" - 15"

Maximum wheel weight

80 kg

Balancing accuracy

1 g

Imbalance position indicator accuracy

0.45°

Measuring speed

140 obr/min

Power of the drive engine

80 W

Electric supply

230V / 50 Hz

Pneumatic power supply

8 - 10 bar

Dimensions

980/1250/1990

Weight

120 kg
