UT-56
Max. Clamp capacity:
up to 56 inches
Max. wheel diameter:
2300 mm
Max. wheel width:
1065 mm
Max. wheel weight:
1500 kg
Index
UT-56
availability
Available
net price
gross price
Delivery price

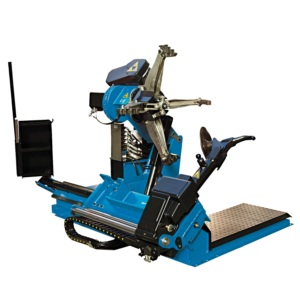

Easy demounting and mounting electro-hydraulic tyre changer for trucks, buses and industrial vehicles tubed or tubeless, with groove rim and split ring rim.
Clamping capacity
14" - 46" (po zastosowaniu przedłużek 56")
Max. wheel width
1065 mm
Max. wheel diameter
2300 mm
Bead-breaker pressure force
2700 kg
Maximum wheel weight
1500 kg
Pressure
130 bar
Table rotation speed
5/10 obr./min.
Motor power
1,3 / 1,8 kW
Pump motor
1,1 kW
Weight
770 kg
Wheel clamp
Hydrauliczny
Electric supply
3 x 400V / 50 Hz
Dimensions
1640/800/2000
