PO-30 H 2S

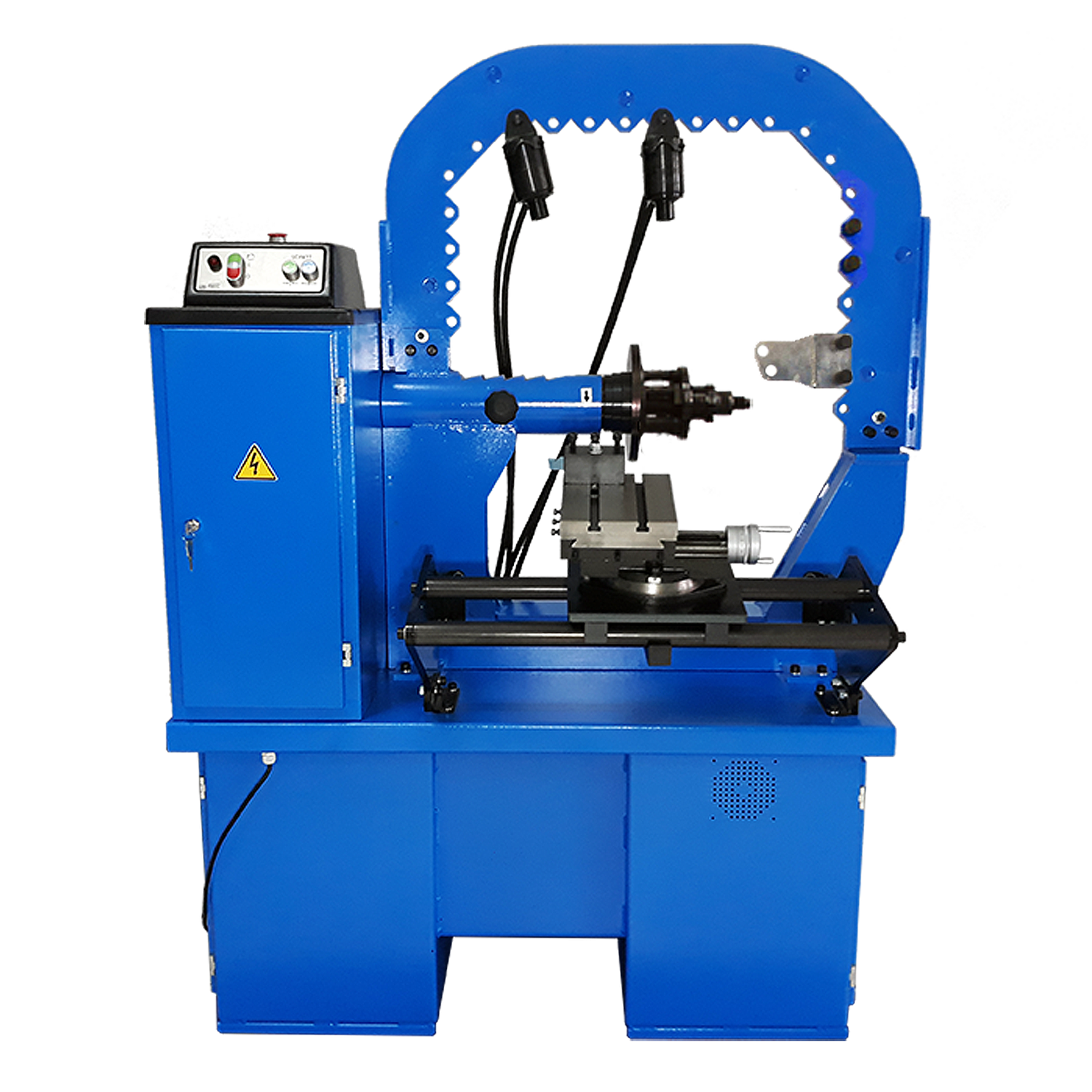

Wheel Rim Straightening Machine for steel and aluminum wheel rims 13"-30”. A wheel rim is repaired by means of two hydraulic cylinders supplied with suitable working end caps of various shapes. Fixing disc with 6 holes and centering ring provide secure rim fixing independently on rim's holes number.

Quick-release hydraulic clamp holder provide fast, precise and secure rim fixing. This is an unique, unparalleled solution offered only by UNI-TROL.

Repair operations are easy and take not more than few minutes. Working end caps allow to fix a damaged wheel rim in any place of its deformation.

The wheel rim straightening machine is equipped with:

  • working end caps of various shapes suitable for different rim deformations
  • a set of centering rings for wheel rims of different central opening diameters
  • deformation positioning device
  • mounting plates with adjustable set screws
  • preliminary straightening lever





  - reinforced and enlarged frame

  - cylinder holder







  - adjustable lathe offset





Technical data:

noise level   75 dB
drive motor power 0.55 kW
hydraulic pump motor power 0.55 kW
weight 450 kg
straightening cylinder force 45 kN
max. hydraulic pump pressure 200 Bar
wheel rim diameter range 13"-30”
power supply 3x400 V/50 Hz
