2312 USG

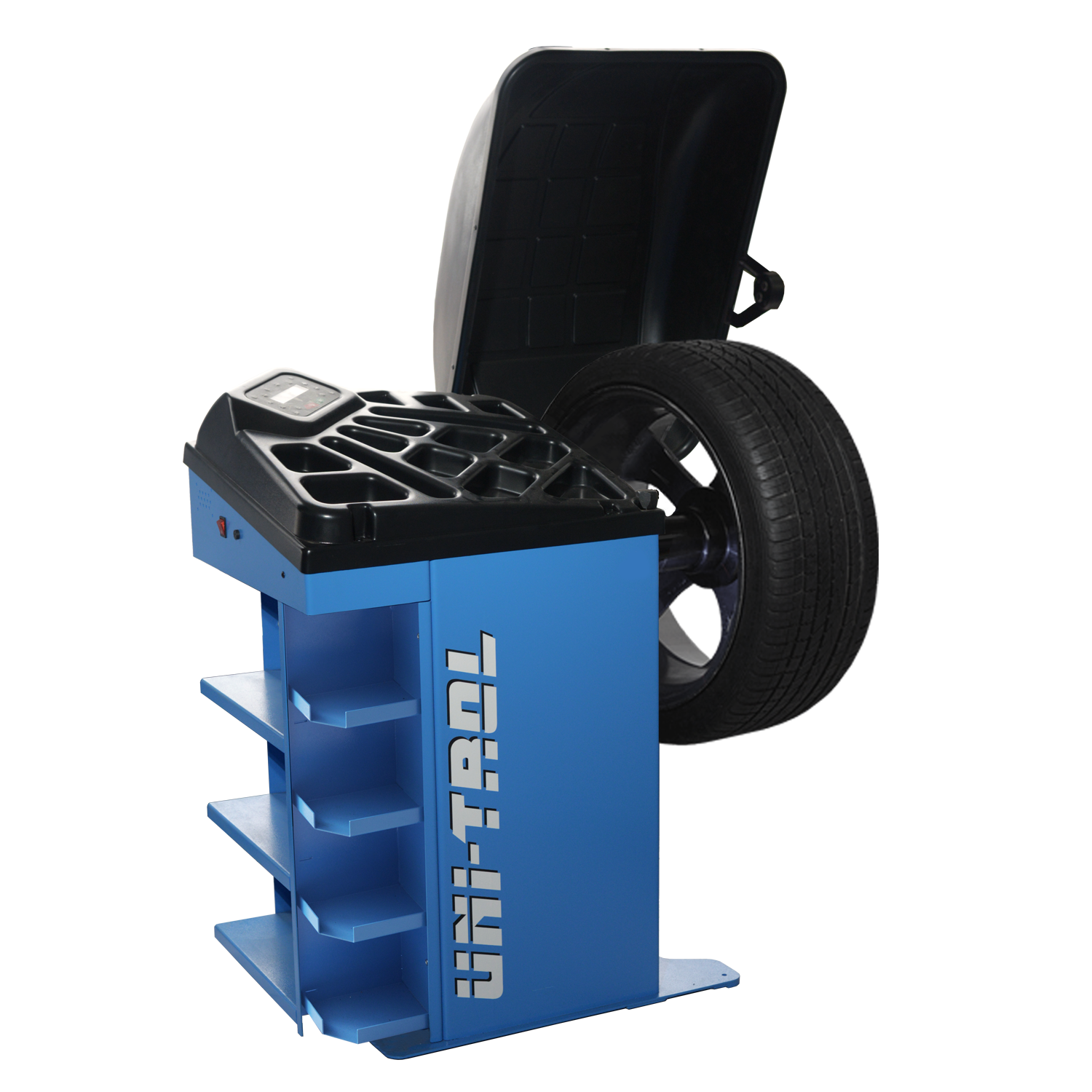

2312 USG is a wheel balancer with automatic measuring arm to enter wheel parameters and wheel guidance system directing the wheel to unbalance point.. The system memorizes the data and shows precisely the weight location. The machine is equipped with ultrasonic sonar for contactless wheel width measurement.

  • Automatic positioning lock
  • Automatic measuring arm
  • Ultrasonic non-contact rim width acquisition
  • ALU programmes
  • 2 ALU programmes for motorbike
  • Optimization
  • Programme "hidden weight"


    Additional equipment: Pneumatic clamp with 3 cones


    Distinctive features:


- anvil




- ergonomic tool tray


Technical data:

Rim diameter: 10” – 30”
Rim width: 2” – 15”
Max. wheel weight: 70 kg
Accuracy: 1 g
Measuring speed: 140 rpm
Motor power: 80 W
Power supply: 230V/50 Hz
Dimensions, mm: 880/1070/1500
Weight: 100 kg
